KOALA Climb-up飞越丛林森林探险冒险公园滑轮连续保护系统直梯支架

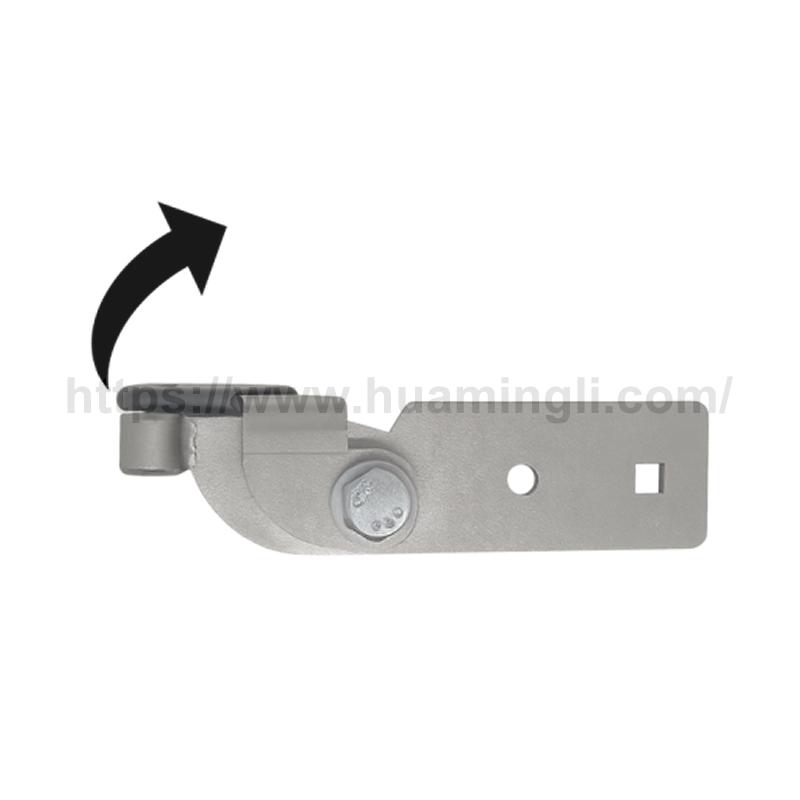

The Climb-up device facilitates ascending vertical obstacles with a continuous belay system.

It is particularly suitable for rigid vertical obstacles such as wooden ladders.

It requires a rigid structure, which either already exists and if not must be installed, all the way up the activity.

In case of a fall, an energy absorber is installed at the top of the obstacle to absorb the impact force.

Simple to install on the side rails on a wooden ladder.

Must to be installed every 50 cm(19.69 inches) and on activities from 1.80m (70.87 inches)

Easy to use.

For Koala Equipment continuous belay only.

The Climb-up has to be installed with the following equipment:

- 2 pear shape Maillons Rapide zinc plated MRPZ 09.0

- 1 ASAP’SORBER L071A00

- 1 Oval Steel SG Karabiner MO02

- 1 Activity arm ME 300-F

The Climb-up is designed to be installed with the following wire ropes:

- Galvanized steel wire ropes, 6 x 7 Ø12 mm (0,47 in)textile core, Lang Forming,

- Galvanized steel wire ropes, 19 x 7 Ø12 mm (0,47 in) metallic core, anti-rotating,

- Swaged galvanized steel wire ropes, 6 x 26 Ø12 mm (0,47 in), metallic core.

Compatible with Ø1/2 inch wire ropes.

Weight : 445 g (0,98 lb).
